Introduction
RP graphite electrode is mainly made of petroleum coke. It is allowed to carry the current density less than 18A/cm2. Generally it is used in regular power electric arc furnace for steel making, silicon making, yellow phosphorus making etc.
| Typical Properties of RP Graphite Electrode | |||||
| Part | Resistance | Bending Strength | Young's Modulus | Bulk Density | CTE(100-600°C) |
| (μΩm) | (Mpa) | (Gpa) | (g/cm3) | (×10 -6/ﾟC) | |
| Electrode | 7.5-8.8 | 6.5-9.5 | 6.5-9.0 | 1.54-1.62 | 2.0-2.4 |
| Nippe | 5.0-6.5 | 16.0-22.0 | 10.0-16.0 | 1.73-1.78 | 1.7-2.0 |
Package
Separated package---The electrodes and nipples are packaged separately.

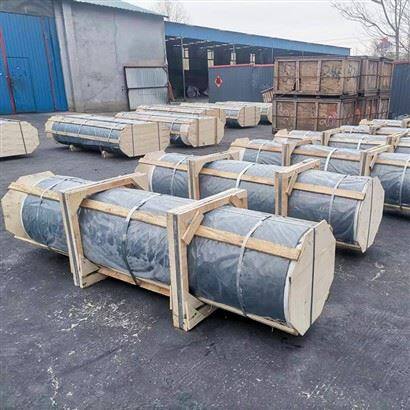

Pre-connection package--- The nipples are connected with one end of electrode body in advance, and then both of them are packaged by wooden rafters, strapped with steel bands outside, the threaded nipples and end faces are covered by foamed plastic caps in order to protect them from damage.
Package Dimension and Weight
| Diameter * Length | Numbers of Electrodes per Package | Electrodes | Nipples pre-connection | |||
| Overall Dimensions | Approx. Weight |
Overall Dimensions | Approx. Weight |
|||
| mm | inch | pcs | mm | kg | mm | kg |
| 200x1800 | 8x72 | 9 | 1900×1070×470 | 908 | 2100×1070×470 | 930 |
