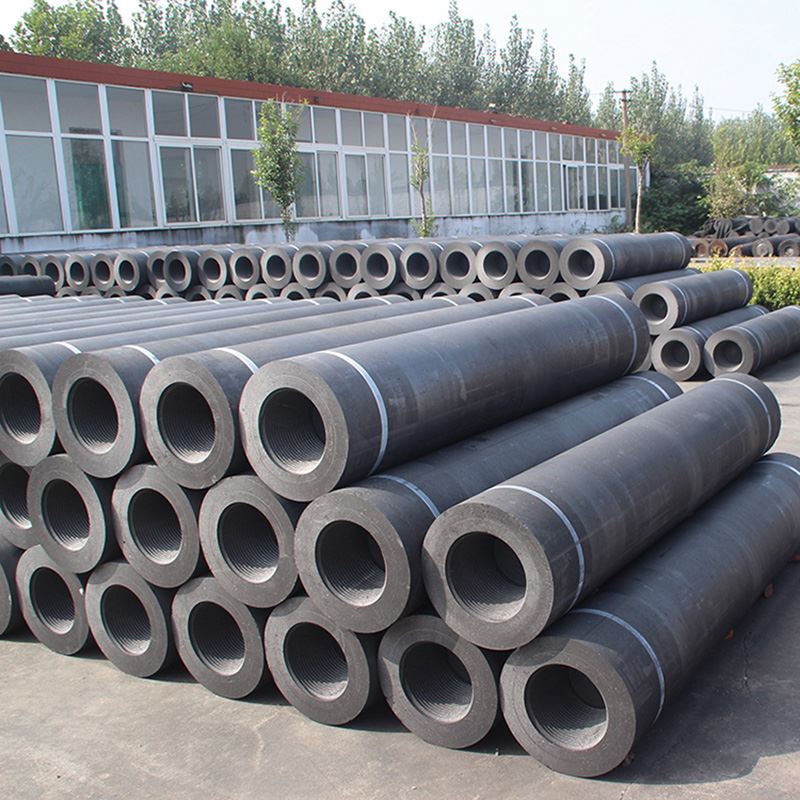

UHP Graphite Electrode is made of 100% high quality needle coke, different from RP/HP grade. It is fearturing lower resistivity, higher density,lower thermal expansion coefficient, and good thermal shock resistance.It performs an excellent consumption in practice.
Package
Separated package---The electrodes and nipples are packaged separately.
Pre-connection package--- Nipples and electrodes are assembled together,and then packaged in wooden crates, strapped with steel bands outside, the threaded nipples and sockets are protected with foamed polyester caps,avoiding dust and damage.

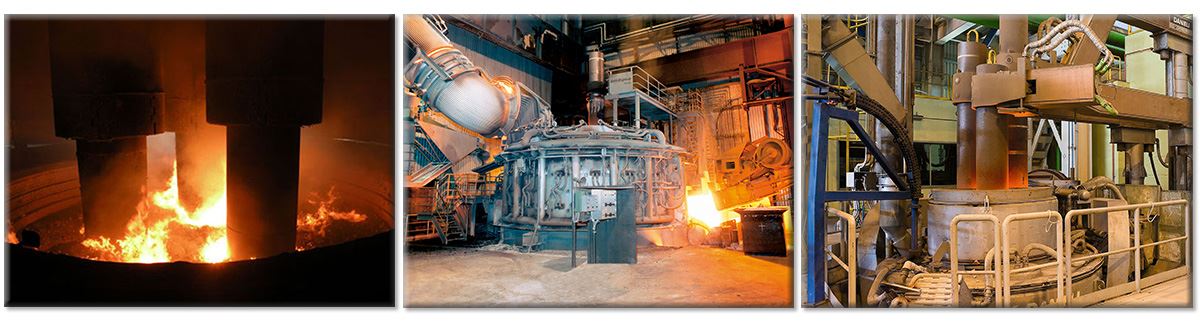

Application
Graphite electrodes are a critical raw material in industries with high-temperature processes like metal refining and steelmaking, due to its excellent electrical conductivity and high temperature resistance.
1.Electric Arc Furnace
2. Mineral Arc Furnace
3.Ladle Furnace
Manufacturing process
Graphite electrode is mainly made of petroleum coke and needle coke, mixed with coal pitch, getting through processes of calcinations, kneading, forming, baking, graphitizing and machining, finally to be products. The following flow diagram will help you understand the process better.
