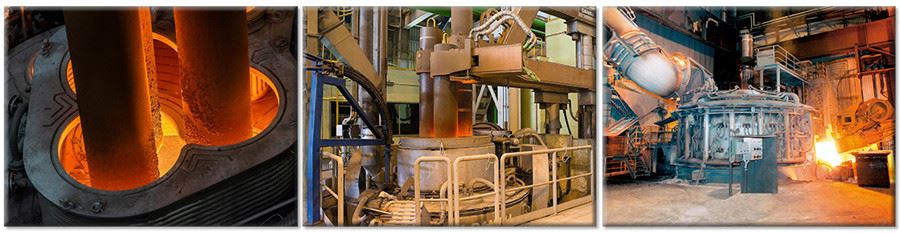

Graphite electrode is the only material that can withstand high temperatures up to 3000 degrees Celsius without being deformed and melted. So, they are chosen to make steel in electric arc furnaces (EAF) and ladle furnaces (LF).
How does it work in practice? While electrical current passing through the electrode, the electrode tips create an electric arc which generates extremely high heat and melts the steel into molten iron. High temperature resistance and thermal shock resistance makes it an indispensable material for steelmaking.
More product details as follows for your reference
|
Properties |
Position |
Unit |
UHP |
HP |
RP |
|
|
300-600mm |
650-800mm |
300-800mm |
300-800mm |
|||
|
Specific Resistance |
Body |
μΩm |
4.8-5.8 |
4.6-5.8 |
5.8-6.6 |
7.8-8.8 |
|
Nipple |
3.8-4.5 |
3.8-4.5 |
4.2-5.0 |
5.0-6.5 |
||
|
Bending Strengh |
Body |
Mpa |
10.0-14.0 |
10.0-14.0 |
10.0-13.0 |
7.0-12.0 |
|
Nipple |
20.0-26.0 |
20.0-26.0 |
18.0-22.0 |
15.0-20.0 |
||
|
Young's Modulus |
Body |
Gpa |
9.0-13.0 |
10.0-14.0 |
8.0-12.0 |
7.0-9.3 |
|
Nipple |
15.0-18.0 |
15.0-18.0 |
14.0-16.0 |
12.0-14.0 |
||
|
Bulk Density |
Body |
g/cm3 |
1.68-1.74 |
1.70-1.74 |
1.62-1.66 |
1.53-1.56 |
|
Nipple |
1.77-1.82 |
1.78-1.84 |
1.74-1.80 |
1.70-1.74 |
||
|
CTE(100-600°C) |
Body |
×10 -6/ﾟC |
1.1-1.4 |
1.1-1.4 |
1.6-1.9 |
2.2-2.6 |
|
Nipple |
0.9-1.2 |
0.9-1.2 |
1.1-1.4 |
2.0-2.5 |
||
|
Ash Content |
% |
0.3 |
0.3 |
0.3 |
0.5 |
|
|
Nominal Diameter (mm) |
Actual Diameter |
Nominal length and tolerance(mm) |
||||||||
|
Max. |
Min. |
1800 |
2100 |
2400 |
2700 |
|||||
|
Standard |
Short |
Standard |
Short |
Standard |
Short |
Standard |
Short |
|||
|
200 |
205 |
200 |
±100 |
-275 |
||||||
|
250 |
256 |
251 |
±125 |
-275 |
||||||
|
300 |
307 |
302 |
||||||||
|
350 |
357 |
352 |
±125 |
-275 |
||||||
|
400 |
409 |
403 |
||||||||
|
450 |
460 |
454 |
+200-150 |
-300 |
||||||
|
500 |
511 |
505 |
||||||||
|
550 |
562 |
556 |
||||||||
|
600 |
613 |
607 |
||||||||
|
650 |
663 |
657 |
||||||||
|
700 |
714 |
708 |
||||||||
|
750 |
765 |
759 |
||||||||
|
800 |
816 |
810 |
||||||||
|

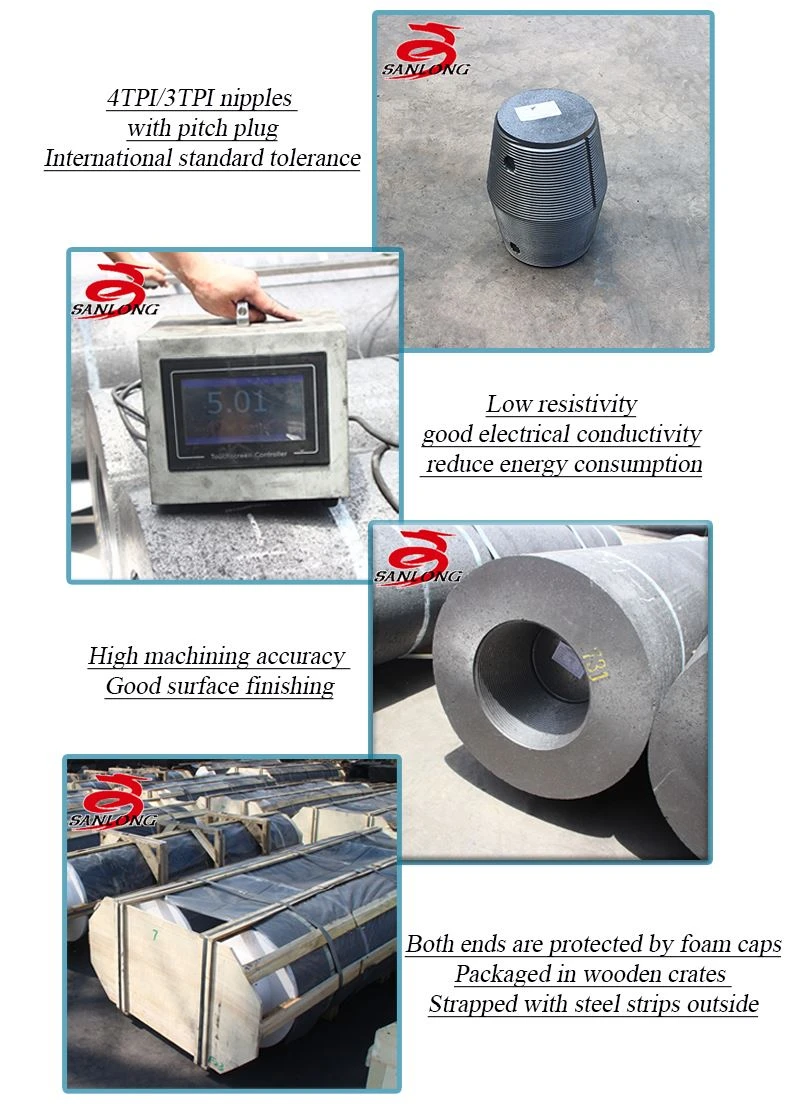

◆ Low electrical resistance ◆ High conductivity ◆ Strong chemical stability ◆ High resistance to oxidation and thermal shock |
* DC electric arc furnace. * AC electric arc furnace. * Submerged arc furnace.. * Ladle furnace. |

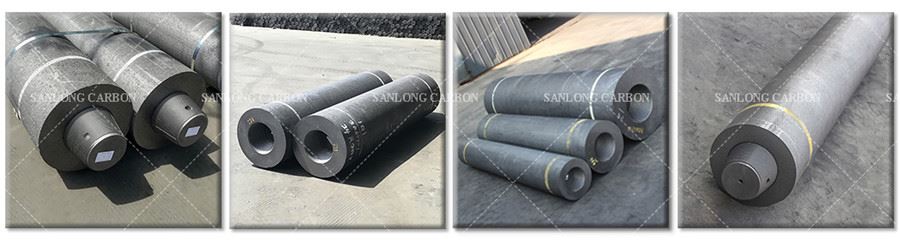

Separated package---The electrodes and nipples are packaged separately.

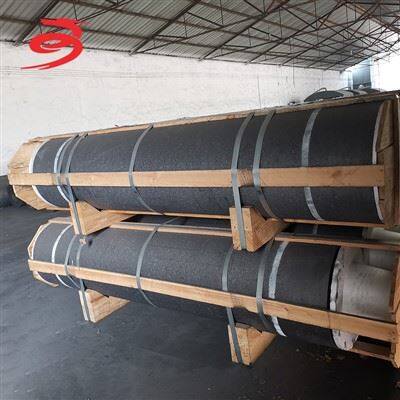

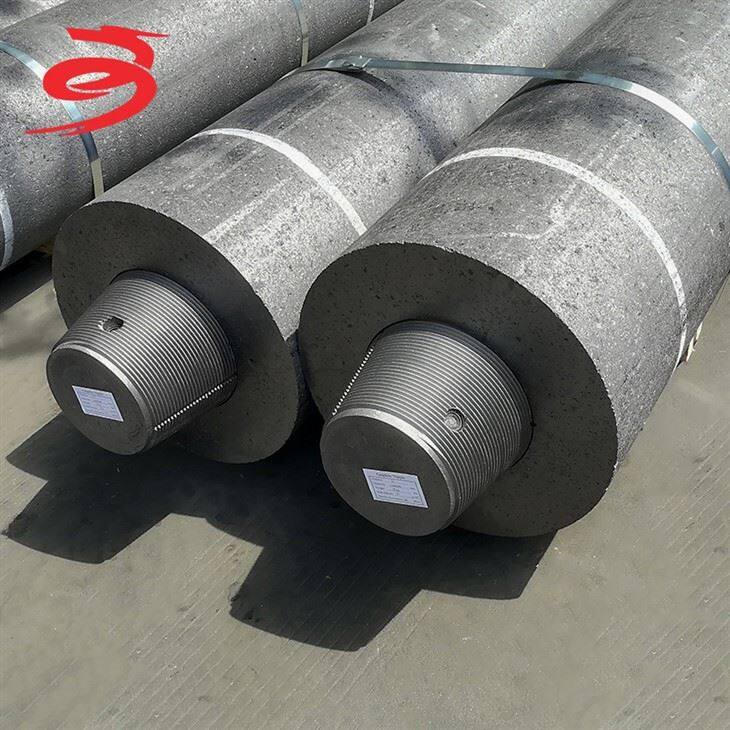

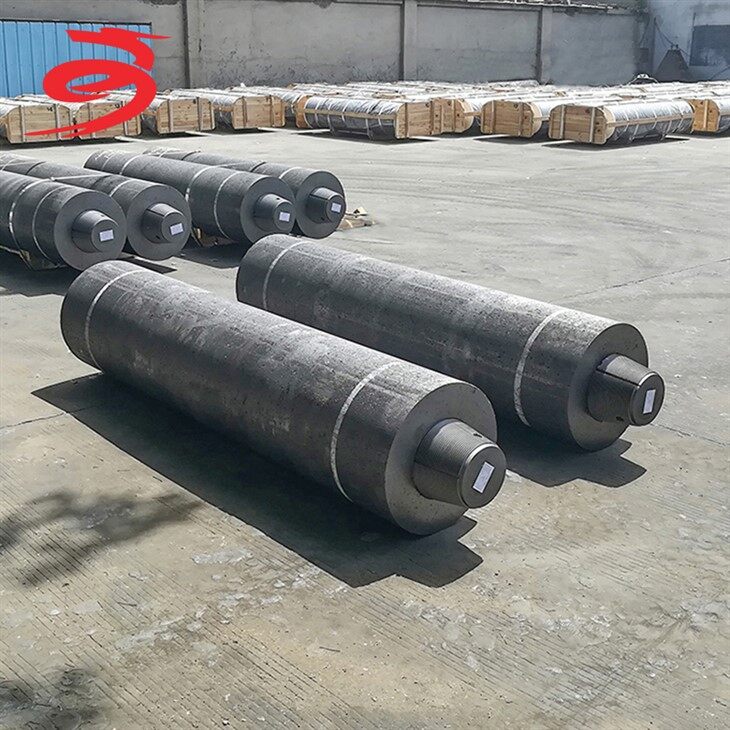

Pre-connection package--- The nipple is connected with one end of electrode body in advance, and then both of them are packaged by wooden rafters, strapped outside with steel bands, the threaded nipples and end faces are covered by foamed plastic caps in order to protect them from damage.
 |
In the summer of 2019, we participated in GIFA in Germany to promote our products. |
| One of our clients comes to China for a factory visit upon our invitation, taking pictures and showing a great interest in graphitization workshop. |  |
 |
At the signing ceremony, the general manager Mr. Ren and our Russian client reached a large agreement on graphite electrodes supply. |
 |
We offer below service to satisfy our customers' needs in practice. *Pre-sale consultation and proposals *Market trend information *After sales technical guide and analysis on various problems during electrode use |
Q1: Are you a manufacturer or trading company?
A4: We are a manufacturer.
Q2: How could I get a quotation as soon as possible?
Just leave below message
Electrode diameter, length, quantity and grade: UHP or HP or RP
Q3: What Is the MOQ?
Minimum order quantity is 20 tons, about one 20' container.
Q4: What Is the delivery time?
For FOB delivery, it takes about 14 days.
For CIF or DAP delivery, it takes one or two months, depending on the destination.
Q5: What are the delivery terms?
EXW, FOB, CIF, DAP at your option.
Q6: What are the payment terms you can accept?
T/T: 30% down payment, and 70% against B/L copy.
L/C: sight or usance acceptable
Deferred payment: Only applicable to regular customers
Q7: How do you guarantee the quality?
With extensive experience with graphite manufacturing and applications, we take careful inspections on every electrode and nipple before shipment, make sure all properties meet customer's requirements.
Q8: What Is your service?
a. Pre-sale consultation and proposals
b. Remote telephone or on-site electrode installation technical guidance
c. Regular telephone visits to customers, providing analysis and guidance on various problems during the use of electrodes
d. For products with quality defects, we promise to replace them with new ones or monetary compensation
Q9: What Is your payment term?
T/T, L/C and Deferred payment.
