Introduction

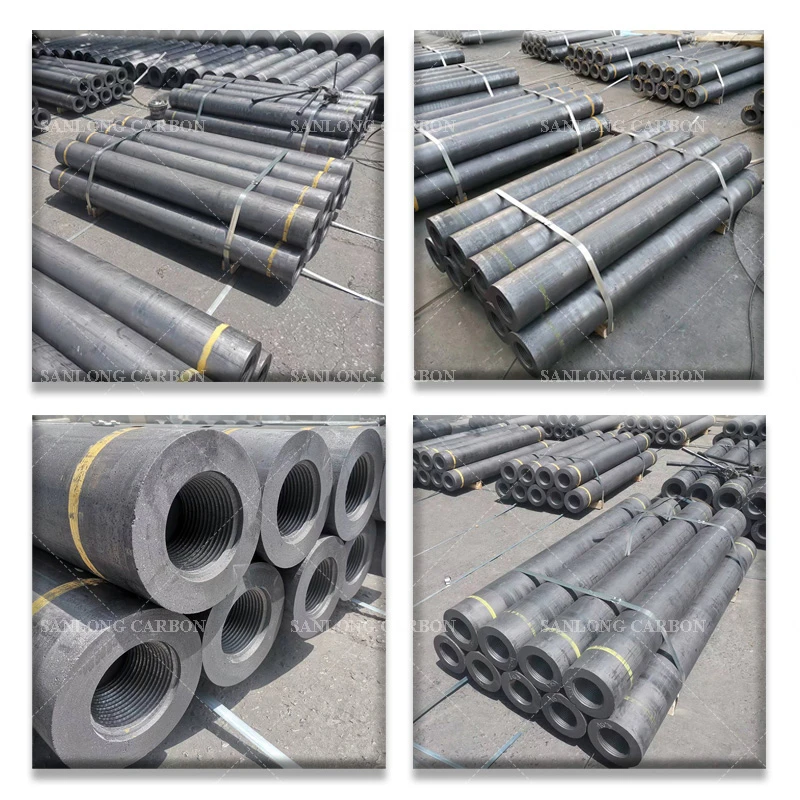

UHP graphite electrode is mainly made up of high-quality needle coke and widely used in ultra high power electric arc furnaces for steel making. It is capable of carrying the current density more than 25A/cm2
| Typical Properties of UHP Graphite Electrode | |||||
| Part | Resistance | Bending Strength | Young's Modulus | Bulk Density | CTE(100-600°C) |
| (μΩm) | (Mpa) | (Gpa) | (g/cm3) | (×10 -6/ﾟC) | |
| Electrode | 4.2-5.8 | 10.0-15.0 | 9.0-13.0 | 1.68-1.74 | 1.0-1.4 |
| Nippe | 3.0-4.0 | 20.0-30.0 | 15.0-21.0 | 1.80-1.86 | 0.9-1.2 |
Package
Separated package---The electrodes and nipples are packaged separately.

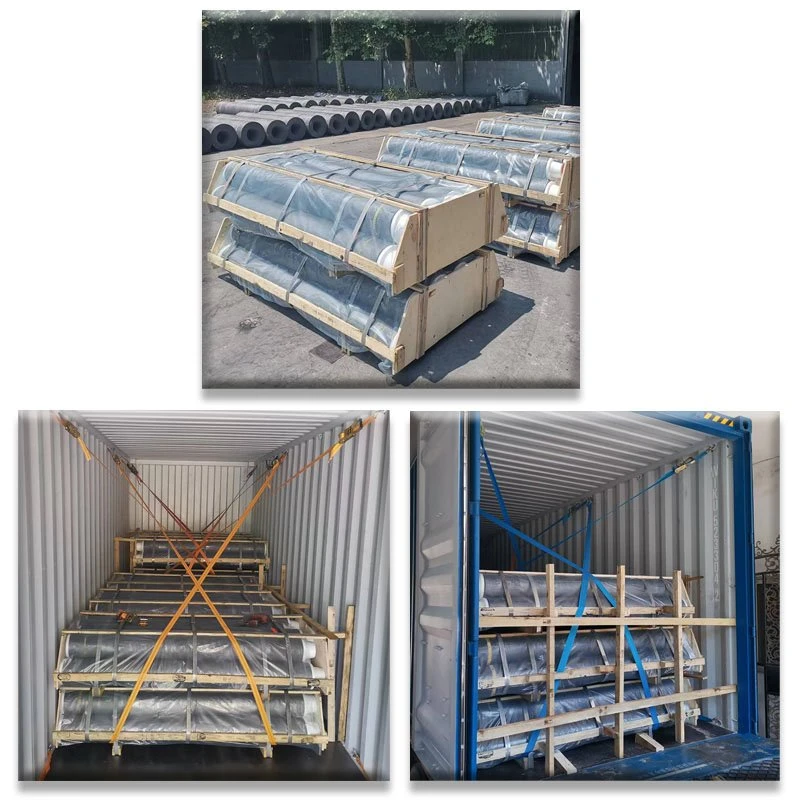

Pre-connection package--- The nipples are connected with one end of electrode body in advance, and then both of them are packaged by wooden rafters, strapped with steel bands outside, the threaded nipples and end faces are covered by foamed plastic caps in order to protect them from damage.
Package Dimension and Weight
| Diameter * Length | Numbers of Electrodes per Package | Electrodes | Nipples pre-connection | |||
| Overall Dimensions | Approx.Weight | Overall Dimensions |
Approx.Weight | |||
| mm | inch | pcs | mm | kg | mm | kg |
| 200x1800 | 8x72 | 9 | 1900×1070×470 | 920 | 2100×1070×470 | 950 |
